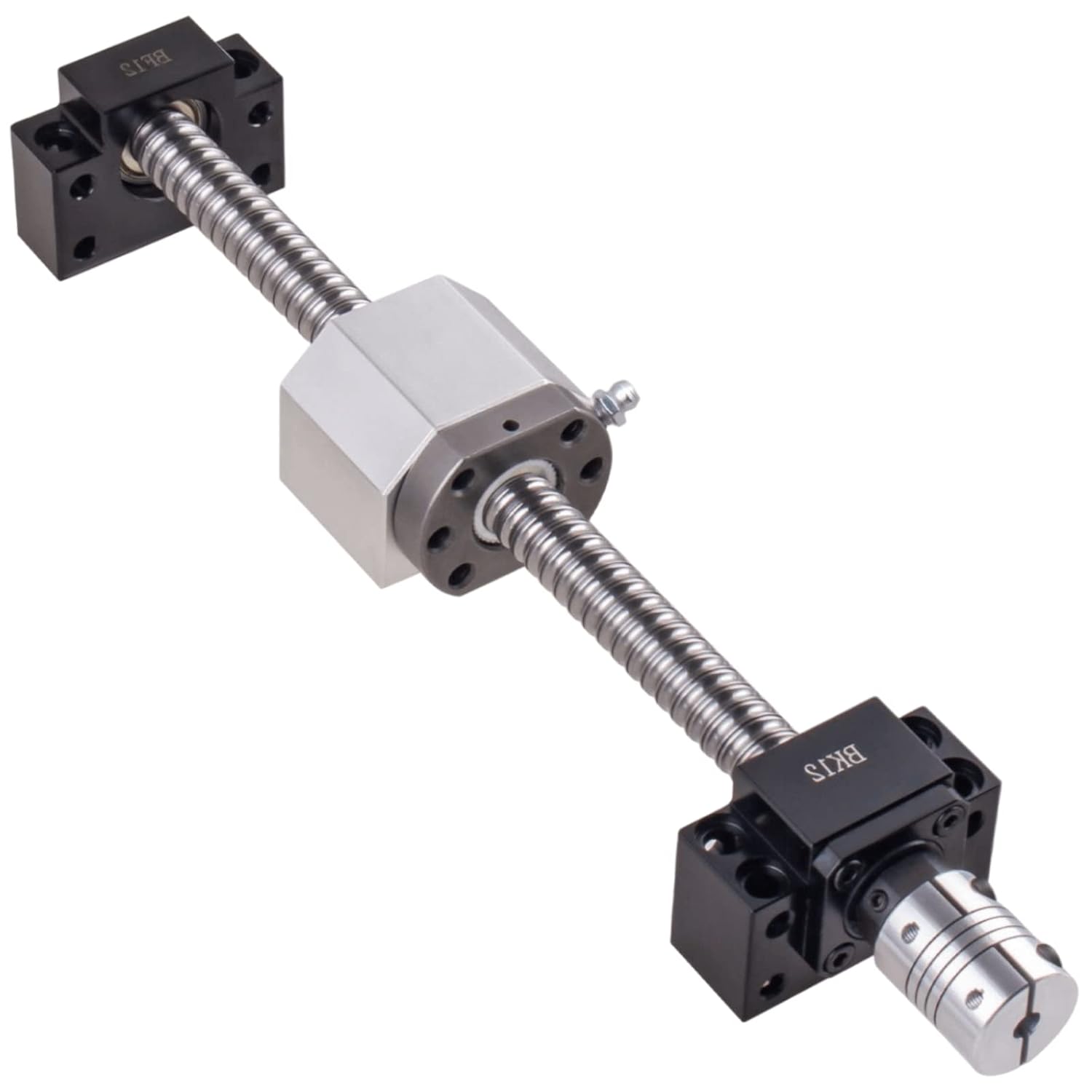

Ball Screw CNC Parts SFU1605 RM1605 16mm 600mm with Metal Deflector Ball Screw nut BK/BF12 End Supports Ball NUT HOUSINGS 1pcs Coupler with end Machining,Length Approx 23.62inch/600mm
Product details
| Management number | 215620072 | Release Date | 2026/04/12 | List Price | $19.19 | Model Number | 215620072 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

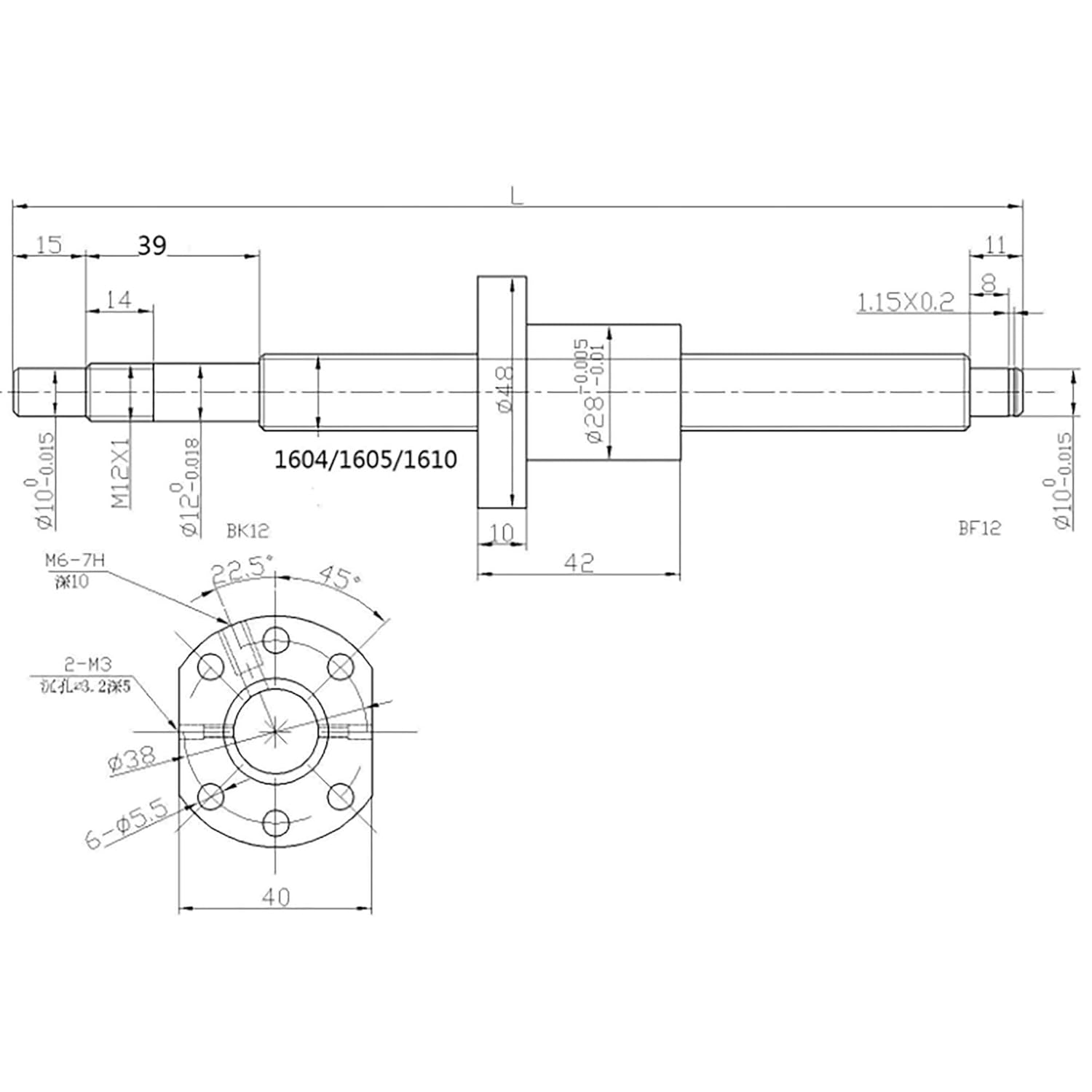

Specifications:Model: SFU1605Precision: C7 GradeLength: 600mm(23.62inch)Diameter: 16mm(0.62inch)Pitch: 5mmProduct name: BK12+BF12 Ball Screw End SupportMaterial: Carbon steelColor: silver, as picture showsPackage Included :1 x End Machine SFU1605-600MM1 Set BK12/BF121 x BR 6.35mm x 10mm Shaft Coupler1 x DSG16H Ball nut HousingThe material is made by the high quality steel and case hardened。Very high load carrying capacity.High stiffness and accuracy.Smooth and ultra quiet bearings for rails.Compact design and easy to mount and dismount.
- Material :Bearing Steel and aluminum alloy, Minimum starting torque, able to apply high speed and micro-feeding
- high service life time due to low friction; low operation noise
- no stick-slip effect, heats up less, reduced drive power required , high axial forces per Ball Screw volumina.
- The ballscrews apply for electronic machinery robot, measuring instruments, medical equipment, X-Y table, factory automation equipment, etc.
- Professional and technical rail and block, Move smoothly without deflection, minimal wear and low noise while using.
| UPC | 190459843027 |
|---|---|
| Brand Name | CHUANGNENG |
| Item Weight | 2000 Grams |
| Bearing Type | Ball Bearing |
| Manufacturer | CHUANGNENG |
| Material Type | Carbon Steel |
| Bearing Number | SFU1605 |
| Item Thickness | 16 Millimeters |
| Outside Diameter | 16 Millimeters |
| Specification Met | Iso 1101 |
| Compatible Lubricant | Grease |
